Lycoming O-360 180HP Aircraft Engine for Cessna 172 Piper PA-28

Basic Information

Place of Origin:	America
Brand Name:	Lycoming
Certification:	FAA 8130-3
Model Number:	Lycoming O-360 Series Aircraft Engine

Minimum Order Quantity:	1 EA
Payment Terms:	,T/T

Get Best Price Contact Now

Highlight:

Lycoming O-360 Series Aircraft Engine

Lycoming O-360 Aircraft Engine

O-360 Aircraft Engine

Lycoming O-360 Series Aircraft Engine

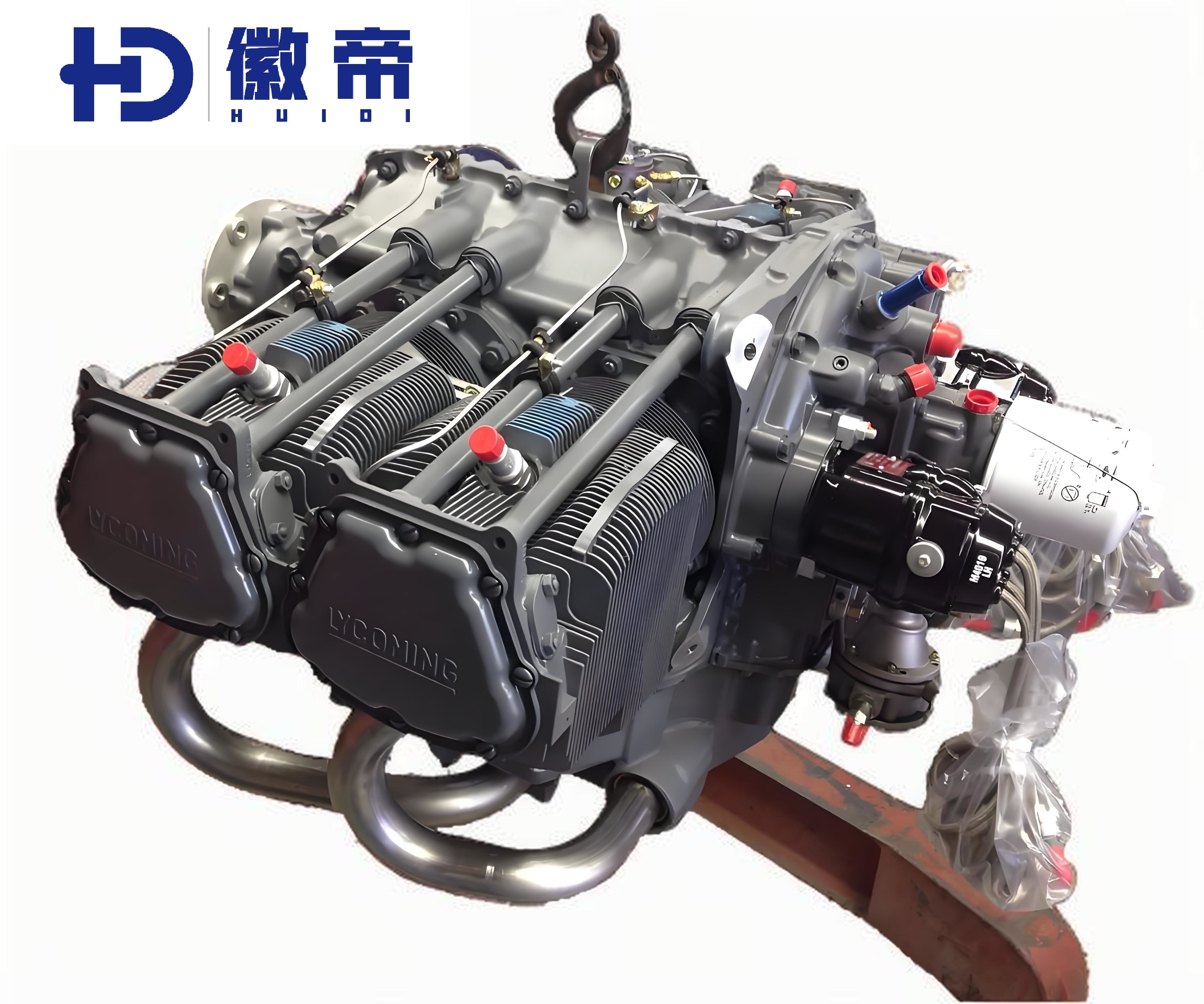

The Lycoming O-360 is a four-cylinder, horizontally opposed, air-cooled aircraft engine that is widely regarded as one of the most popular and reliable engines in general aviation. It is an evolution of the O-320 series, offering increased power and performance.

Part Numbers

Model	New	Rebuilt	Overhaul
O-360-A1A	ENPL-RT8435	RENPL-RT8435	HENPL-RT8435
O-360-A1A	ENPL-RT8597	RENPL-RT8597	HENPL-RT8597
O-360-A1A	ENPL-RT8681	RENPL-RT8681	HENPL-RT8681
O-360-A1A	ENPL-RT8683	RENPL-RT8683	HENPL-RT8683
O-360-A1A	ENPL-RT8788	RENPL-RT8788	HENPL-RT8788
O-360-A1A	ENPL-RT9778	RENPL-RT9778	HENPL-RT9778

Key Specifications

Type: Four-cylinder, horizontally opposed (flat-four), air-cooled
Displacement: 361 cubic inches (5.9 liters)
Power Output: Typically produces 180 horsepower (depending on the specific model and configuration)
Compression Ratio: Varies by model, typically 8.5:1
Weight: Approximately 258 to 280 pounds (dry weight, depending on the model)
Fuel Type: Aviation gasoline (100LL or lower-octane fuels, depending on the model)
Cooling: Air-cooled
Ignition System: Dual magnetos for redundancy
Redline RPM: Typically 2,700 RPM

Applications

The O-360 engine is used in a wide range of general aviation aircraft, including:

Cessna 172 (later models)
Piper PA-28 Cherokee
Piper PA-32 Cherokee Six
Grumman American AA-5
Van's RV series (experimental aircraft)
Aeronca Champion
Mooney M20

Variants

The O-360 series includes several models, each tailored for specific applications or aircraft. Some notable variants include:

O-360-A1A: 180 hp, used in the Cessna 172 and Piper PA-28.
O-360-A1D: 180 hp, used in the Piper PA-28 and other aircraft.
O-360-A1G6: 180 hp, with a higher compression ratio for improved performance.
O-360-C1A: 180 hp, used in helicopters, such as the Bell 47.
O-360-E1A: 180 hp, used in the Mooney M20.
O-360-F1A: 180 hp, used in the Grumman American AA-5.

Features

Reliability: Known for its durability and long service life when properly maintained.
Simplicity: The engine's design is straightforward, making it easier to maintain and repair.
Versatility: Used in both certified and experimental aircraft.
Dual Magneto System: Provides redundancy for improved safety.

Advantages

Proven design with decades of reliable service.
Wide availability of parts and support.
Suitable for a variety of aircraft types.

The Lycoming O-360 remains a cornerstone of general aviation due to its reliability, simplicity, and widespread use. It continues to power many training and recreational aircraft worldwide.
