ACES Viper II Fluke Vibration Meter Tester Machine

ACES Viper II Fluke Vibration Meter Tester Machine
ACES Viper II Fluke Vibration Meter Tester Machine ACES Viper II Fluke Vibration Meter Tester Machine ACES Viper II Fluke Vibration Meter Tester Machine ACES Viper II Fluke Vibration Meter Tester Machine ACES Viper II Fluke Vibration Meter Tester Machine ACES Viper II Fluke Vibration Meter Tester Machine ACES Viper II Fluke Vibration Meter Tester Machine ACES Viper II Fluke Vibration Meter Tester Machine ACES Viper II Fluke Vibration Meter Tester Machine ACES Viper II Fluke Vibration Meter Tester Machine ACES Viper II Fluke Vibration Meter Tester Machine ACES Viper II Fluke Vibration Meter Tester Machine
Basic Information
Place of Origin: America
Brand Name: ACES Systems
Certification: FAA 8130-3
Model Number: ACES Viper II
Minimum Order Quantity: 1 EA
Price: Please consult customer service
Delivery Time: Please consult customer service
Payment Terms: T/T
Get Best Price Chat Now
  • Detail Information
  • Product Description
Highlight:

ACES fluke vibration meter

,

fluke vibration meter machine

,

fluke vibration testing machine

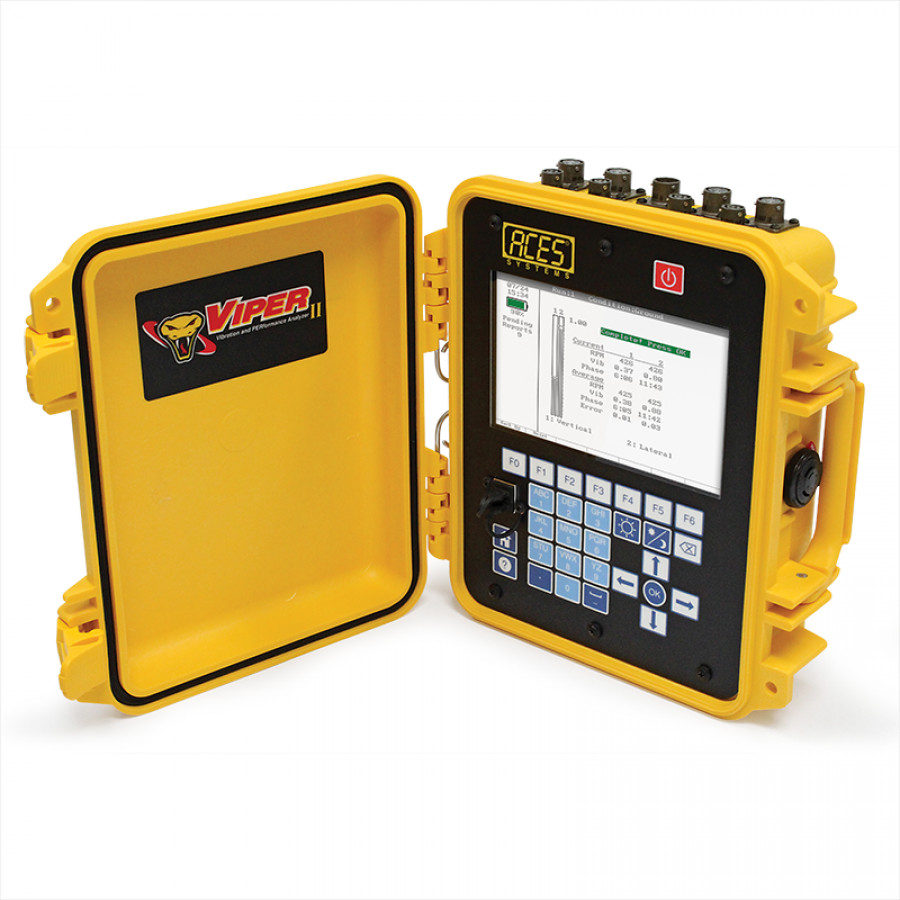

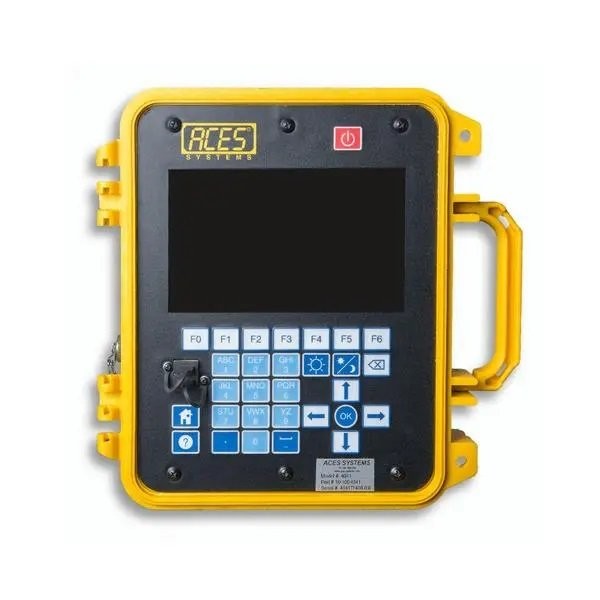

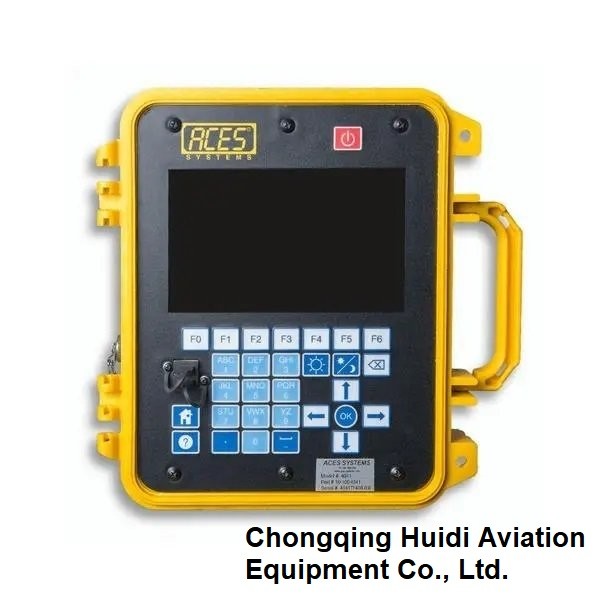

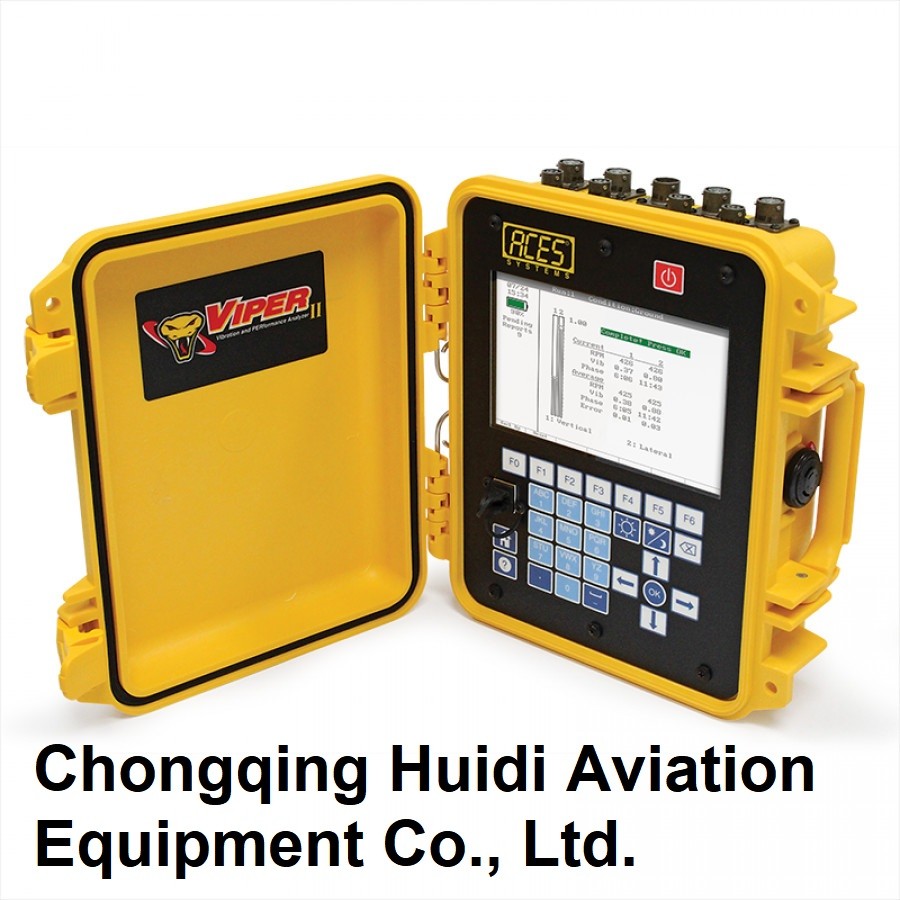

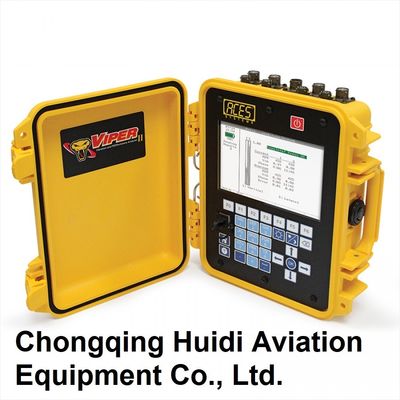

ACES Viper II Fluke Vibration Meter Tester Machine

Vibration Tester (ACES Viper II) combines vibration analysis, rotor tracking and balancing, fan adjustment balancing, propeller balancing, and progressive analysis required for high-end engines.

The VIPER II is a versatile and compact instrument that combines the vibration analysis, rotor tracking and balancing, fan adjustment balancing, propeller balancing, and progressive analysis required for high-end engines. With the VIPER II, you can easily perform all maintenance tasks on almost any airframe or engine.

ACES Viper II Fluke Vibration Meter Tester Machine 0

Vibration refers to the displacement or oscillation of an object away from its original position. In the use of aircraft, harmful vibration beyond the standard will lead to rapid wear of components, structural damage, and power plant failure. Therefore, the aircraft department accessories manufacturers require or suggest that the engine and the main rotating parts do regular vibration testing and balance inspection, early detection of fault symptoms to take measures, so as to reduce maintenance costs and accident risks.

Key Features of VIPER II
  • Ability to simplify, store, and process large amounts of data essential for field maintenance personnel
  • Balance results can be directly related to the vibration test since data is obtained from similar engine environments
  • With ACES artificial intelligence, the weight scheme is constantly adjusted as the engine changes
  • Saves up to 67% of data acquisition time compared to complex multi-point balanced test runs
Performance Parameters
Memory capacity 32M
LCD screen 320X240 pixels
Phase accuracy 1 degree
Amplitude accuracy ±1%
Maximum amplitude 20IPS
Balance speed 60RPm-60000rpm
Maximum spectral analysis 1800000RPM (30KHz)
Sensitivity 20mv/ips
Minimum signal -80db
Technical Specifications
Vibration input 9.5 Volt Peak - Peak, 0 to 240 phase values for each IPS sensor of 20 millivolts
Sensor Type Universal sensor that accepts any form of vibration signal input (acceleration, rate, phase) and any voltage
Vibration amplitude Accuracy Frequency range goes up or down 1%
Frequency Range Maximum 30,000 Hz (1.8 million RPM)
Speed input 60 to 10,000 RPM more accurate than 1 degree phase
Display All-day readable color with ultra-bright LED backlight
Power supply LCD display can last up to 7 days rechargeable lithium-ion battery
Size 10.5 inches wide, 9,75 inches long, and 5 inches high
Weight About 6 pounds (2.8 kg)
