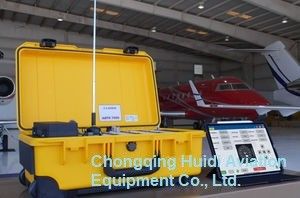

ADS-B Test Set：PR-100T

The PR-100T is a portable ADS-B test and monitoring system designed for aviation maintenance, ground vehicle verification, and ADS-B system validation. It serves as a field-deployable tool for technicians, avionics engineers, and airport ground operations teams.

• Dual-Band Monitoring (1090ES & 978MHz UAT) - Verifies ADS-B transmissions from aircraft, drones, and ground vehicles (e.g., VAT140).
• Real-Time Decoding - Displays:
  • ICAO hex codes
  • Flight IDs
  • Position/altitude/speed data
  • Signal strength & error detection

• Handheld or Mountable - Compact for use in hangars, on runways, or in mobile test vehicles.
• Rugged & Weather-Resistant (IP54 or higher in some models) - Suitable for outdoor use.
• Long Battery Life (6+ hours) - Rechargeable Li-ion battery or DC power option.

• Transponder Testing - Validates Mode S, ADS-B Out, and TIS-B compliance.
• RF Spectrum Analysis - Checks 1090MHz signal quality and interference.
• Logging & Reporting - Records test data for maintenance documentation.

• Avionics Installation & Maintenance - Verifies ADS-B Out compliance (FAR 91.227, DO-260B).
• Airport Ground Vehicle Checks - Tests VAT140-class transponders for proper operation.
• Drone/UAS Compliance Testing - Ensures RPAS meet ADS-B mandates.
• ATC & Surveillance System Validation - Confirms ADS-B coverage in ATC environments.

1. Pre-Flight ADS-B Checks
   • Verify aircraft transponder output before departure.
2. Airport Ground Vehicle Audits
   • Confirm VAT140 transponders broadcast correctly.
3. Troubleshooting ADS-B Coverage Gaps
   • Identify weak signal areas on runways/taxiways.
4. Regulatory Compliance Testing
   • Ensure drones/GA aircraft meet FAA/EASA ADS-B rules.

1. Power On & Initialize - Select frequency (1090/978 MHz).
2. Antenna Setup - Use omnidirectional or directional antenna for targeted testing.
3. Monitor/Test Mode
   • Live Traffic View: Check nearby ADS-B targets.
   • Transponder Test: Validate specific aircraft/vehicle transmissions.
4. Generate Reports - Save logs for maintenance records.

The PR-100T is a versatile, portable ADS-B test set for ensuring compliance and diagnosing issues in aircraft, ground vehicles, and ATC systems. Its dual-band support, rugged design, and diagnostic features make it ideal for:

• Avionics technicians
• Airport operations teams
• Drone compliance testers

Need guidance on specific test procedures or regulatory standards? Ask about:

• FAR 91.227 / DO-260B validation
• VAT140 ground vehicle test protocols
• Interference troubleshooting
