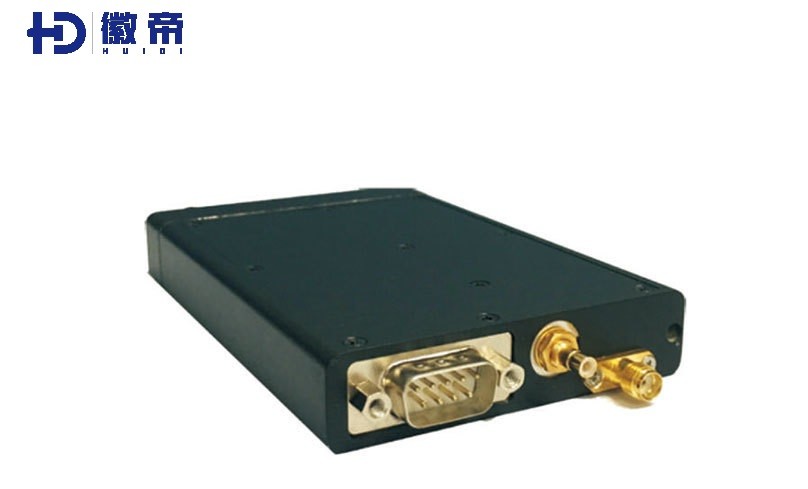

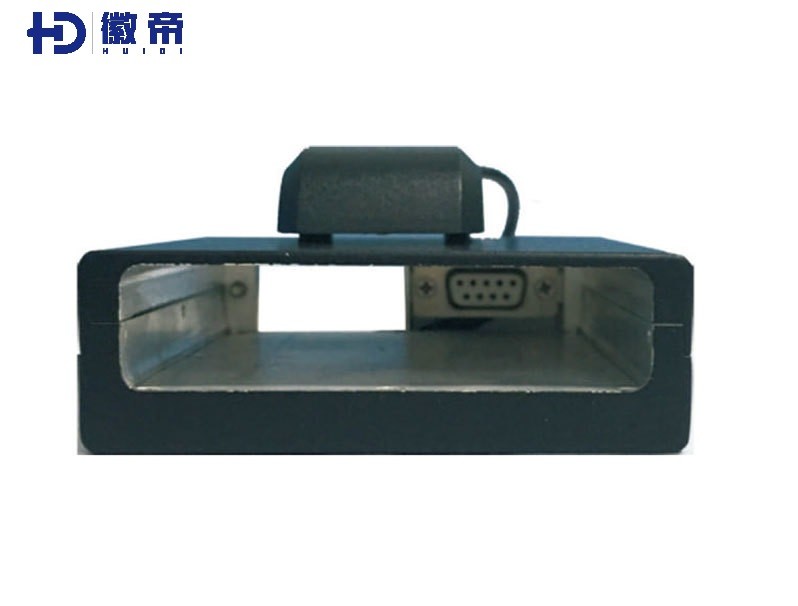

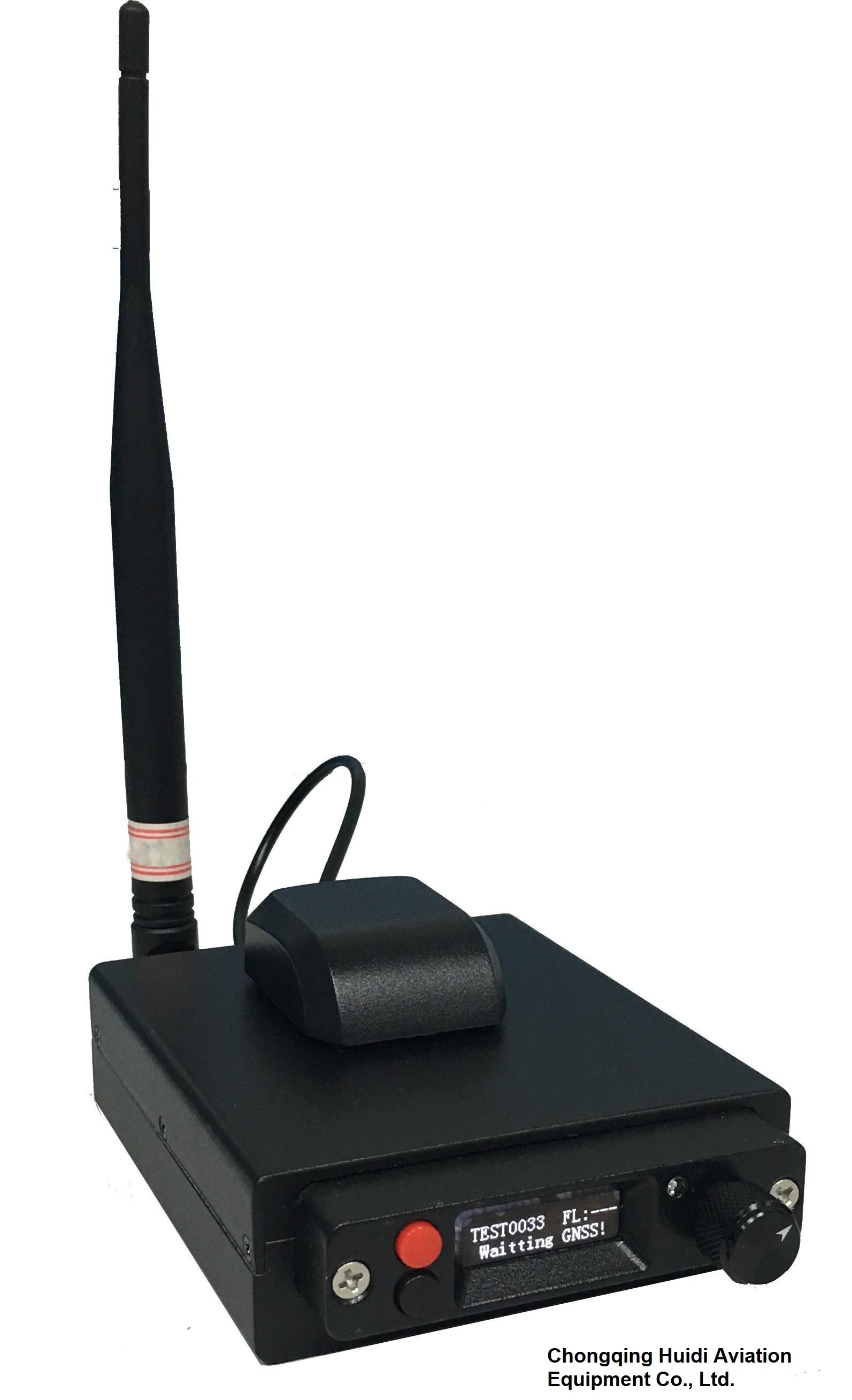

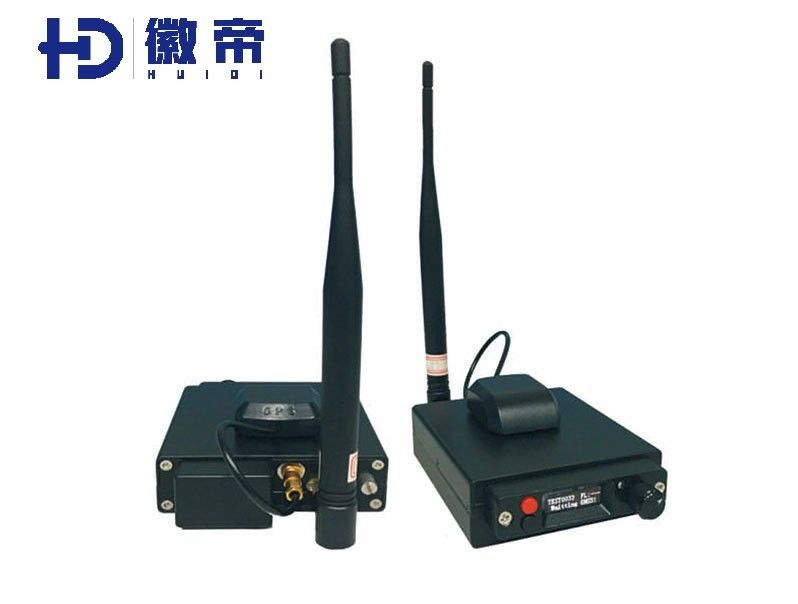

The PT300A Portable ADS-B Out Receiver is mainly used for aircraft without ADS-B function, airport scene vehicles, and ground obstacles to achieve ADS-B signal transmission function.
The PT300A is a low-cost, high-efficiency, small-size portable device to realize ADS-B signal transmission. It's designed for aircraft without ADS-B function, airport scene vehicles, and ground obstacles to realize ADS-B signal transmission.
The PT300A does not require any interface crosslinking with the aircraft, and has its own independent battery compartment and antenna for signal receiving and transmitting. The battery can be charged once to provide the transmitter with continuous independent operation for 24 hours. The PT300A also features an external power supply interface, which can be connected to other power supply equipment for long-term continuous operation as required.
| Compliant with D0-260B |
| Transmit power: 53±1dBm |
| RF signal center frequency: 1090MHz± 100Hz |
| GNSS positioning accuracy: better than 5m |
| GNSS update rate: 5Hz |
| Output message: DF18 (ICAO, call sign, latitude and longitude, altitude, speed, heading, etc.) |
| External power supply voltage: DC8~20v |
| Operating temperature range: -10℃~ +50℃ |
| Equipment size: Host 108*70*15mm, battery 97*83*28mm (excluding antenna and bulge) |
| Weight: 480g, including transmitter host 190g, battery 290g |
