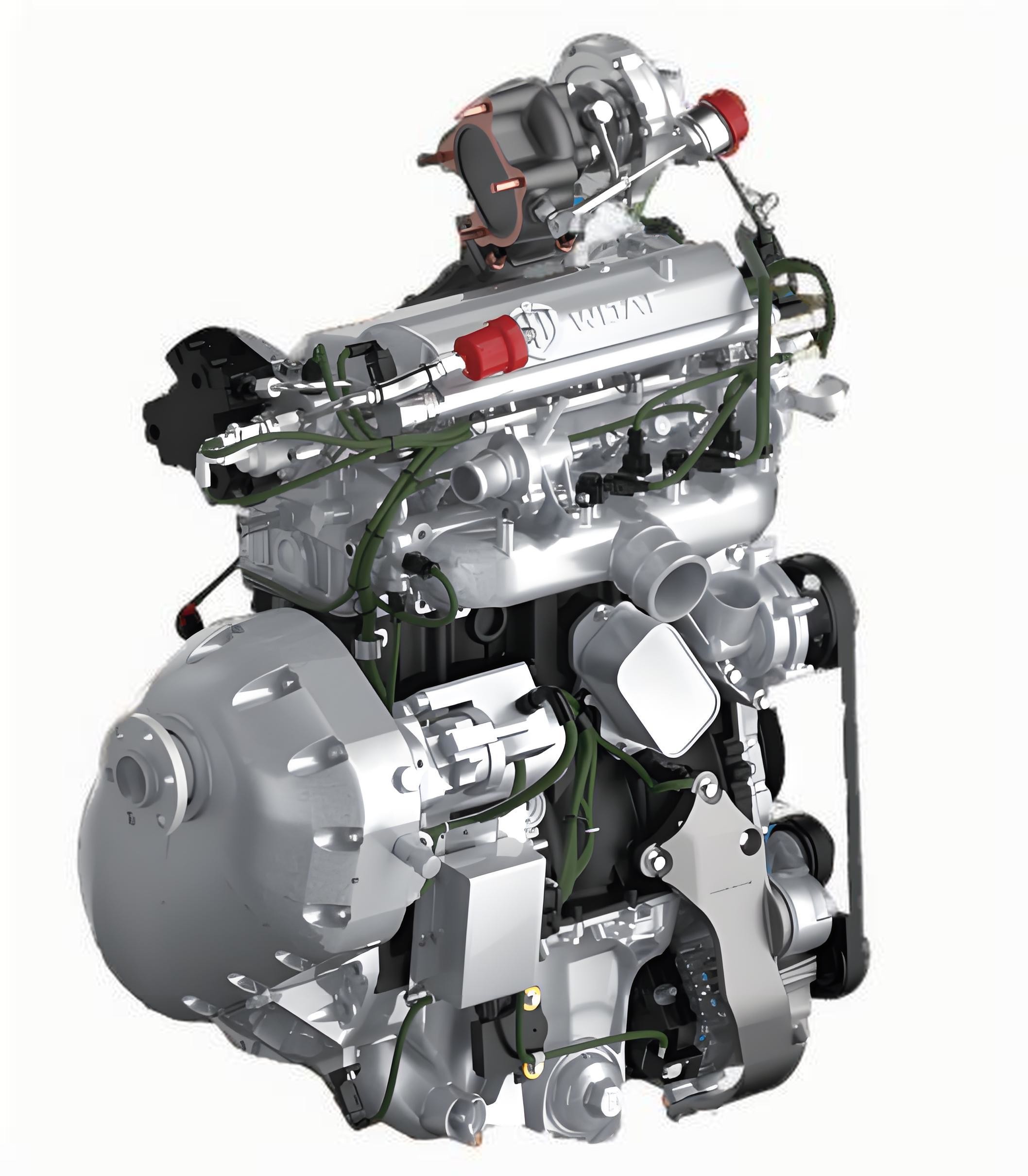

AEC2.0L Aircraft Engine (Replace E4C/E4A Series Engine)

The AEC2.0L aircraft engine is a piston engine independently developed and produced by Wuhu Diamond Aviation Engine Co., Ltd. It has the advantages of high reliability, good economy and strong power.

AEC2.0L can replace E4C/E4A series like E4C-00-000-BHY / E4A-00-000-BHY (Austria Engine), which is made in China.

The maximum take-off power of the AEC2.0L aircraft engine is 123.5 kilowatts and the maximum approved flight altitude is 18,000 feet.

WEIGHT

Engine with propeller speed reduction gearbox i = 2.43: 64.0 kg (140.8 lb)

Exhaust system: 4.0 kg (8.8 lb)

Engine suspension frame: 2.0 kg (3.7 lb)

Overload clutch: 1.7 kg (3.7 lb)

External alternator: 3.0 kg (6.6 lb)

PERFORMANCE

84.8 kW (115 hp) at 5800 1/min

TORQUE: 144 Nm (106 ft. lb.) at 4900 1/min

Max RPM: 5800 1/min

BORE: 79.5 mm (3.13 in)

STROKE: 61.0 mm (2.4 in)

DISPLACEMENT: 1211.2 cm³ (73.91 cu in)
