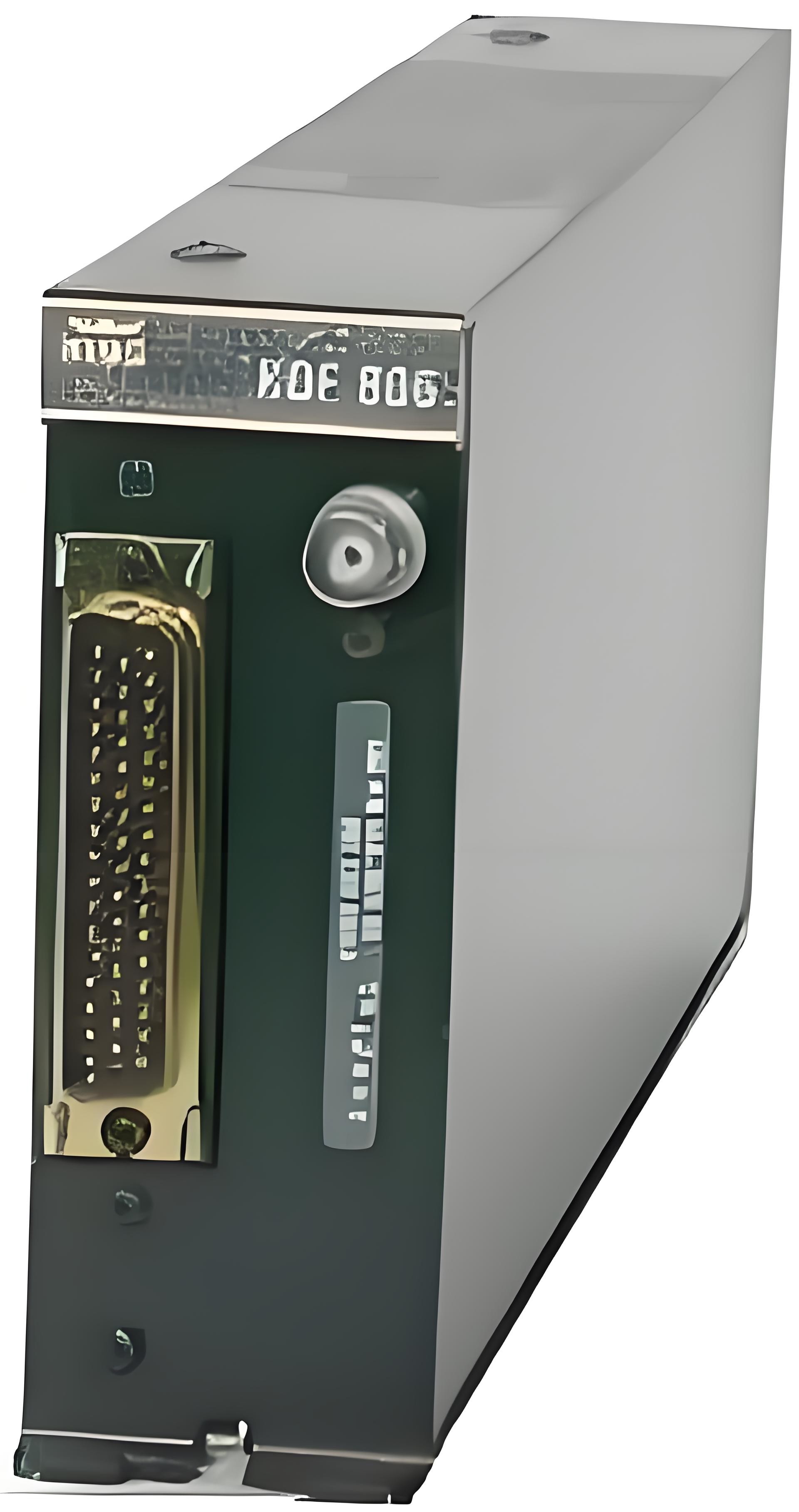

Bendixking Remote Mounted Aviation ADF Receiver Systems KDF 806, P/N 066-1077-00/066-1077-01

Bendixking Remote Mounted Aviation ADF Receiver Systems KDF 806, P/N 066-1077-00/066-1077-01
Bendixking Remote Mounted Aviation ADF Receiver Systems KDF 806, P/N 066-1077-00/066-1077-01 Bendixking Remote Mounted Aviation ADF Receiver Systems KDF 806, P/N 066-1077-00/066-1077-01 Bendixking Remote Mounted Aviation ADF Receiver Systems KDF 806, P/N 066-1077-00/066-1077-01 Bendixking Remote Mounted Aviation ADF Receiver Systems KDF 806, P/N 066-1077-00/066-1077-01 Bendixking Remote Mounted Aviation ADF Receiver Systems KDF 806, P/N 066-1077-00/066-1077-01 Bendixking Remote Mounted Aviation ADF Receiver Systems KDF 806, P/N 066-1077-00/066-1077-01
Basic Information
Place of Origin: United Kingdom
Brand Name: Bendixking
Certification: FAA
Model Number: KDF 806 ADF RECEIVER
Minimum Order Quantity: 1 EA
Price: Please consult customer service
Payment Terms: ,T/T
Get Best Price Chat Now
  • Detail Information
  • Product Description
OEM: BendixKing Desc: ADF Receiver
Model: KDF-806 Part Number: 066-1077-00/066-1077-01
SIZE: 2.00"W X 5.00"H X 10.00"L FREQUENCY RANGE: 190 - 1799 KHz
Highlight:

Remote Mounted ADF Receiver

,

ADF Receiver Systems

,

190kHz adf receiver aviation

Bendixking Remote Mounted Aviation ADF Receiver Systems KDF 806, P/N 066-1077-00/066-1077-01
Attribute Value
OEM BendixKing
Description ADF Receiver
Model KDF-806
Part Number 066-1077-00/066-1077-01
Size 2.00"W x 5.00"H x 10.00"L
Frequency Range 190 - 1799 kHz
Overview

Bendixking KDF 806 Is Able To Select Weak Or Distant Signals With A High Level Of Accuracy

Designed to offer superior performance and reliability, the all solid-state BendixKing KDF 806 is the acknowledged standard in remote-mounted ADF systems. Incorporating "coherent detection" technology, the KDF 806 is able to select weak or distant signals with a high level of accuracy.

This capability helps reject interference and eliminate bearing errors, even during thunderstorms, to give you reliable ADF tracking. All ADF frequencies, from 190 kHz to 1799 kHz (with an option to include marine frequencies up to 2182 kHz), are generated by a digital synthesizer.

Specifications
Specification Value
Power Required 11-33 VDCKFS
Weight 3.50 lb. (1.59 kg)
Width 2.00 in. (5.08 cm)
Height 5.00 in. (12.70 cm)
Length 10.00 in. (25.40 cm)
TSO C37b, C38b
DO 160ENV DO-142
Features
  • Coherent detection design for greater range
  • Used with KFS-586 and KFS-586A flip-flop frequency selector which displays active and standby frequencies in gas discharge numerics
  • Models available (-01) with ADF Superflag output for use with EFIS
  • 11-33 VDC
  • TSO'd
  • Service Bulletin available to convert -00 to -01
Bendixking Remote Mounted Aviation ADF Receiver Systems KDF 806, P/N 066-1077-00/066-1077-01 0
Contact us for prices.
