| Place of Origin: | America |
|---|---|
| Brand Name: | Garmin |
| Certification: | FAA |
| Model Number: | Garmin GTN Xi Series |
| Minimum Order Quantity: | 1 EA |
| Payment Terms: | ,T/T |
| Highlight: | Airborne navigation display aviation,4.9Inch navigation display aviation,4.9Inch aircraft navigation display |
||
|---|---|---|---|

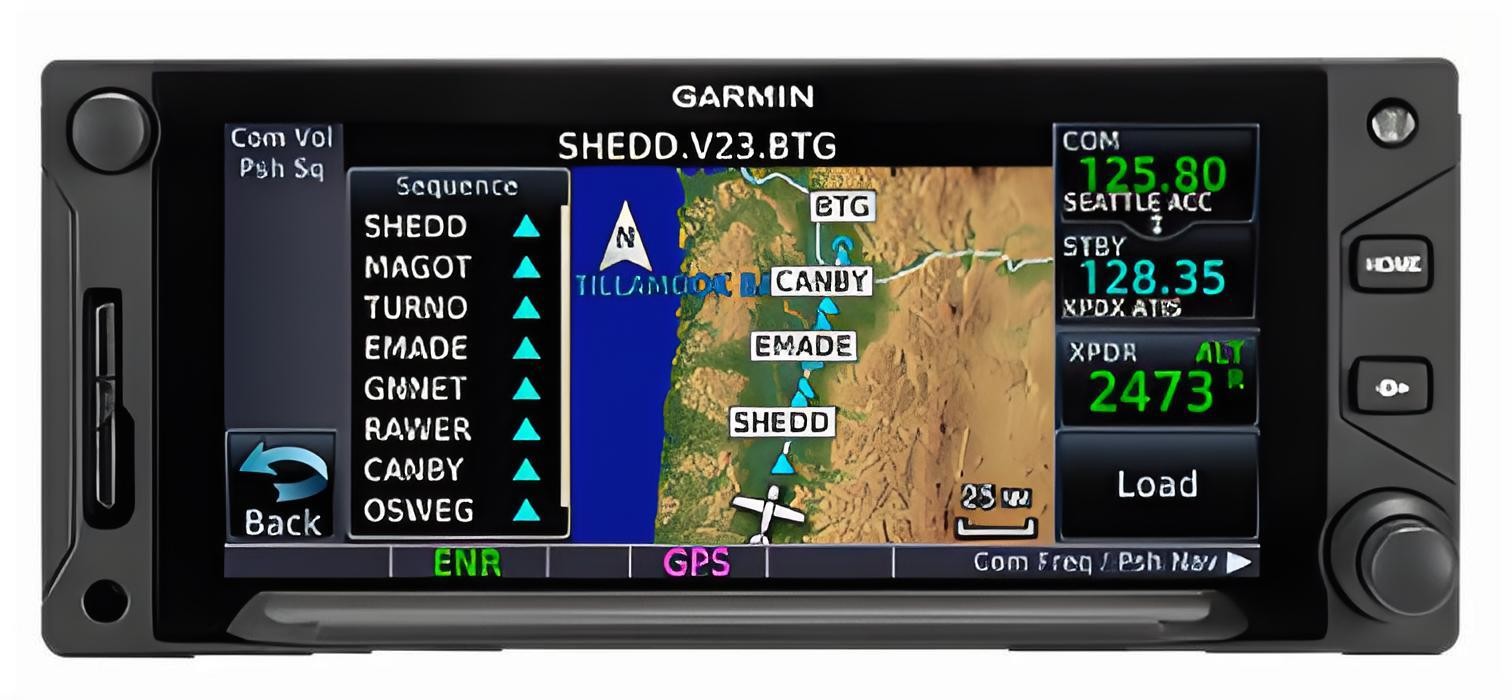

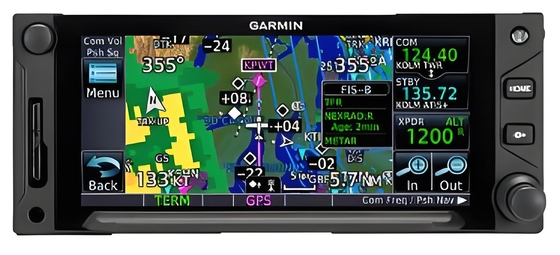

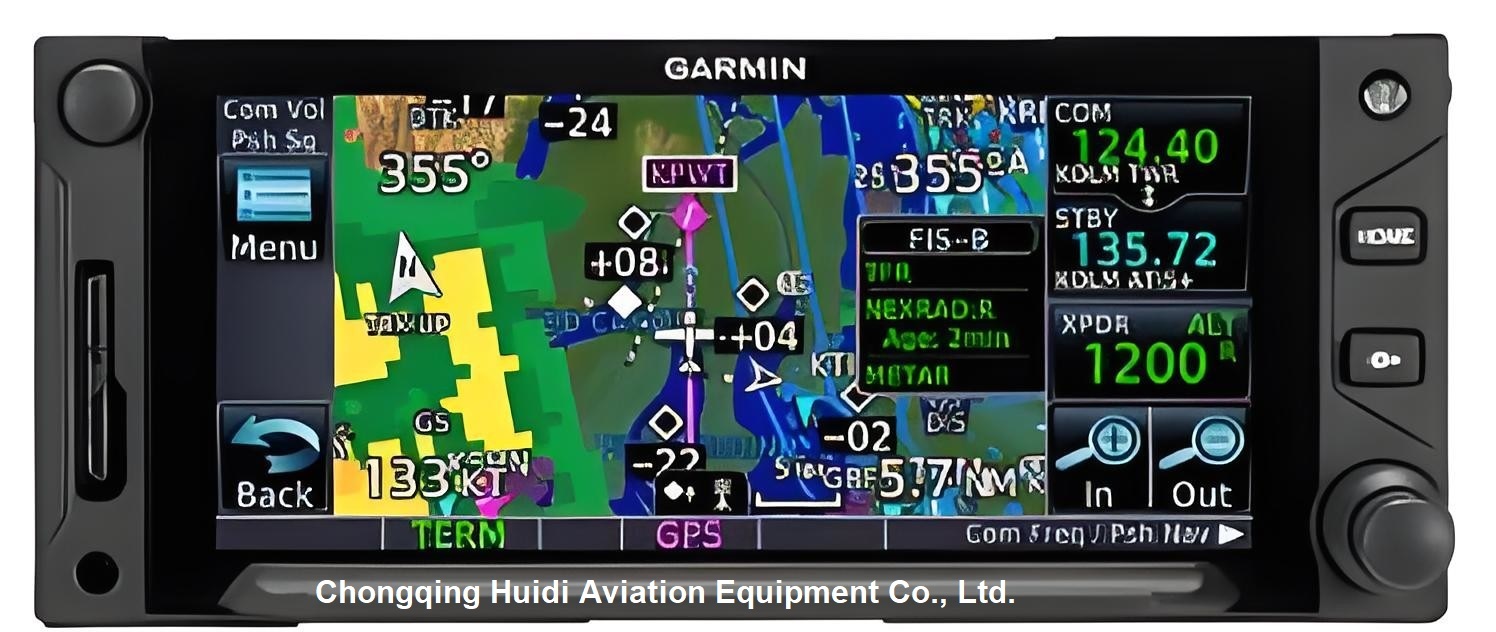

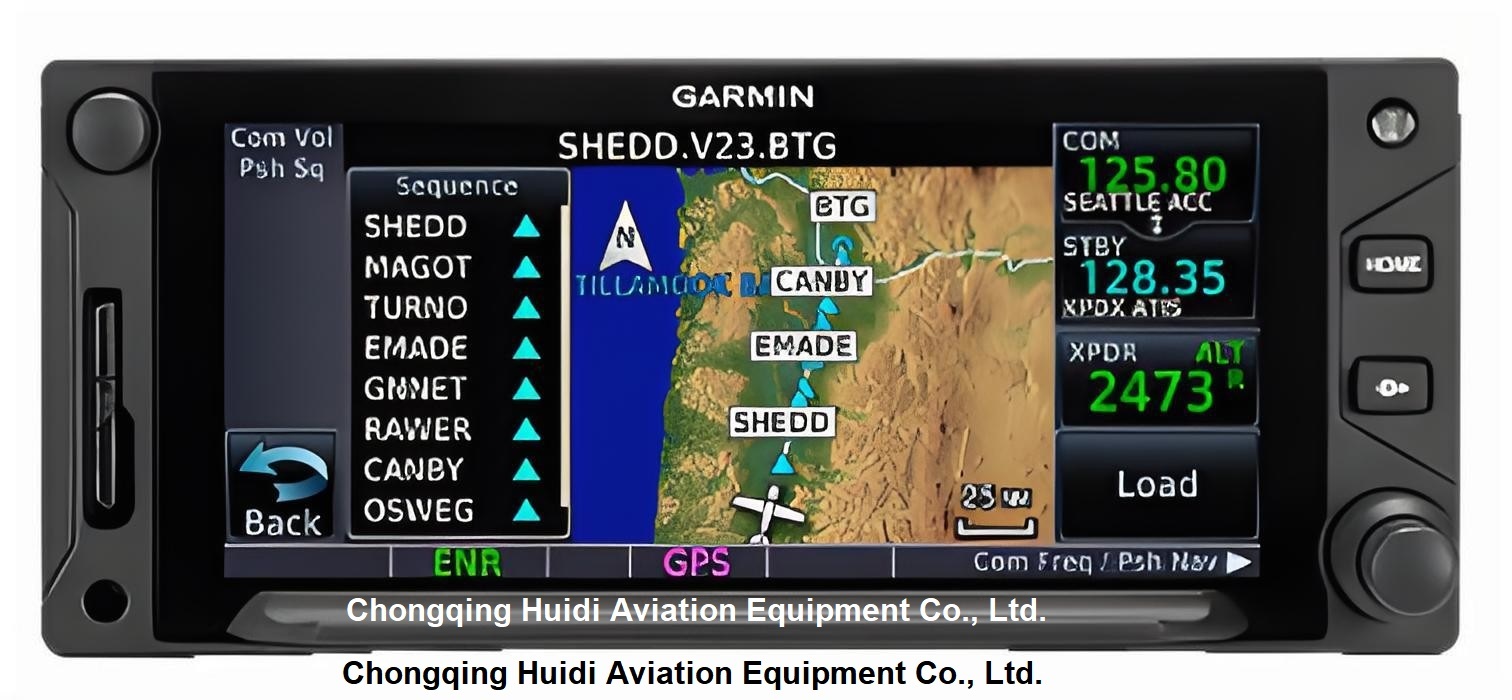

The Garmin GTN Xi Series is a state-of-the-art avionics suite designed for general aviation and commercial aircraft. It integrates navigation, communication, and flight planning into a single, user-friendly system.
| Display Size | 4.9 inches (125 mm) Diagonal |
|---|---|
| Resolution | 834 x 370 pixels |
| Unit Dimensions | 6.25" (159 mm) W x 2.65" (67 mm) H x 11.25" (286 mm) D |
| Weight | 4.8 lb (2.18 kg) |
| Input Voltage | 11-33 VDC |
| Operating Temperature | -20°C to 55°C (-4°F to 131°F) |
| GPS Channels | 15 (12 GPS, 3 GPSWAAS/SBAS) |
| Positioning Accuracy | <1.25 m horizontal/vertical with WAAS |
| Maximum Speed | 1166 knots |
| Position Update | 0.2 sec (5 Hz) |
| 006-D7010-Q0 (010-01477-4S) | G500(H)/G600 TXi/GTN Xi, GWX 8000 Enablement (Part 23 - Class I/II/III) |
|---|---|
| 010-D1696-30 (010-02192-30) | G500(H)/G600 Txi/GTN Xi, Radar AGCS and TD Enablement |
| 006-D7011-Q0 (010-01478-4S) | G700 TXi/GTN Xi, GWX 8000 Enablement (Part 25 and Part 23 - Class IV) |
| 190-02327-03 | GTN Xi Series Pilot's Guide |
| GTN 750H Xi System | 010-02002-06: Black receiver with helicopter rack, backplate, connection kit |
|---|---|
| GTN 650H Xi System | 010-01999-06: Black receiver with helicopter rack, backplate, connection kit |
| GTN 635H Xi System | 010-01998-06: Black receiver with helicopter rack, backplate, connection kit |
