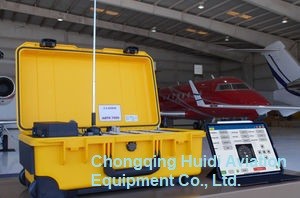

PR-100T ADS-B Test Set for Accurate Aircraft Tracking
The PR-100T is a portable ADS-B test and monitoring system designed for aviation maintenance, ground vehicle verification, and ADS-B system validation. It serves as a field-deployable tool for technicians, avionics engineers, and airport ground operations teams.
Key Features of the PR-100T
1. ADS-B Signal Analysis & Testing
  • Dual-Band Monitoring (1090ES & 978MHz UAT) - Verifies ADS-B transmissions from aircraft, drones, and ground vehicles (e.g., VAT140).
  • Real-Time Decoding - Displays:
    • ICAO hex codes
    • Flight IDs
    • Position/altitude/speed data
    • Signal strength & error detection
2. Portable & Field-Ready Design
  • Handheld or Mountable - Compact for use in hangars, on runways, or in mobile test vehicles.
  • Rugged & Weather-Resistant (IP54 or higher in some models) - Suitable for outdoor use.
  • Long Battery Life (6+ hours) - Rechargeable Li-ion battery or DC power option.
3. Advanced Diagnostic Functions
  • Transponder Testing - Validates Mode S, ADS-B Out, and TIS-B compliance.
  • RF Spectrum Analysis - Checks 1090MHz signal quality and interference.
  • Logging & Reporting - Records test data for maintenance documentation.
4. Applications
  • Avionics Installation & Maintenance - Verifies ADS-B Out compliance (FAR 91.227, DO-260B).
  • Airport Ground Vehicle Checks - Tests VAT140-class transponders for proper operation.
  • Drone/UAS Compliance Testing - Ensures RPAS meet ADS-B mandates.
  • ATC & Surveillance System Validation - Confirms ADS-B coverage in ATC environments.
Comparison with Other ADS-B Test Equipment
Feature PR-100T AeroAPI 1090T TechComm TT-22
Frequency 1090ES + 978 UAT 1090ES only 1090ES + 978 UAT
Portability Handheld Bench-top Handheld
Testing Modes ADS-B In/Out, RF ADS-B Out Full transponder test
Best For Field technicians Avionics shops Military/ATC
Typical Use Cases
  1. Pre-Flight ADS-B Checks
    • Verify aircraft transponder output before departure.
  2. Airport Ground Vehicle Audits
    • Confirm VAT140 transponders broadcast correctly.
  3. Troubleshooting ADS-B Coverage Gaps
    • Identify weak signal areas on runways/taxiways.
  4. Regulatory Compliance Testing
    • Ensure drones/GA aircraft meet FAA/EASA ADS-B rules.
How to Operate the PR-100T
  1. Power On & Initialize - Select frequency (1090/978 MHz).
  2. Antenna Setup - Use omnidirectional or directional antenna for targeted testing.
  3. Monitor/Test Mode
    • Live Traffic View: Check nearby ADS-B targets.
    • Transponder Test: Validate specific aircraft/vehicle transmissions.
  4. Generate Reports - Save logs for maintenance records.
Conclusion
The PR-100T is a versatile, portable ADS-B test set for ensuring compliance and diagnosing issues in aircraft, ground vehicles, and ATC systems. Its dual-band support, rugged design, and diagnostic features make it ideal for:
  • Avionics technicians
  • Airport operations teams
  • Drone compliance testers
Need guidance on specific test procedures or regulatory standards? Ask about:
  • FAR 91.227 / DO-260B validation
  • VAT140 ground vehicle test protocols
  • Interference troubleshooting
