| Place of Origin: | America |
|---|---|
| Brand Name: | Goodyear |
| Certification: | FAA |
| Payment Terms: | ,T/T |
| Highlight: | Custom good year aviation tires,A320 good year aviation tires,A320 goodyear radial tires |
||
|---|---|---|---|
Goodyear General aviation tires for Airbus A320 aircraft (including the flight radial tire). Chongqing Huidi Aviation Equipment Co., Ltd. specializes in providing aviation components including engines, avionics, tires, and equipment to aviation colleges, general aviation companies, and aircraft manufacturers.
| Size | Ply | Speed Rating | TT/TL | Part Number | Manufacturer | Position |
|---|---|---|---|---|---|---|
| 30X8.8R15 | 16 | 225 mph | TL | 309Q62-1 | Airbus | Nose |
| 46X17.0R20 | 30 | 225 mph | TL | 467Q02-3 | Airbus | Main |
| Parameter | Value |
|---|---|
| Size | 46X17.0R20 |
| Rated Level (PR) | 30PR |
| Rated Speed | 225MPH |
| Rated Load | 46,000 pounds |
| Rated Air Pressure | 225PSI |
| Maximum Overhauls | 3 times |
| Tread Groove Depth | 0.5 |
| Average Weight | 160.4 LBS (~72.9 kg) |

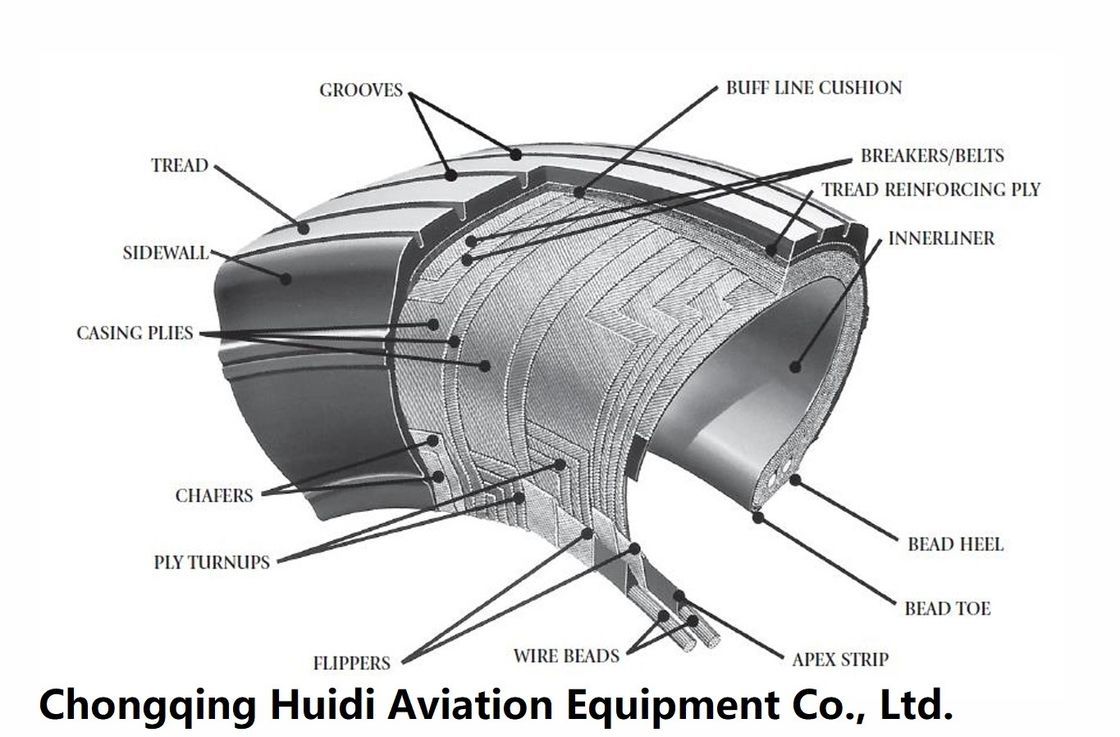

The Goodyear Flight Radial represents advanced aerospace technology featuring dimensional stability for extended service life and improved cutting resistance. The radial structure enables more landings, while the optimized bead design reduces weight.
| Performance Characteristic | Value |
|---|---|
| Center line anti-slip depth (inches) | 0.50 |
| Nominal weight (pounds) | 160.4 |
| Inflation diameter (inches) | 46.17 |
| Section width (inches) | 17.24 |
| Rated load (pounds) | 46,000 |
| Rated inflation (psi) | 222 |
| Tire Size | 30x8.8R15 |
|---|---|
| Features |
|
